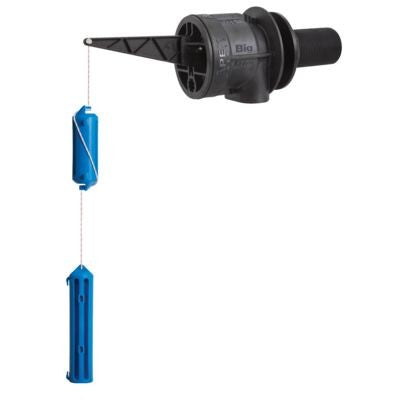

FLOAT VALVE APEX BIG BOY

Apex Big Boy Diaphragm Valve Super High Flow

Benefits:
- No float switched - no power required
- Soft closing - no water hammer
- Highest flow rate of ANY reservoir valve available
- Longtail, no need for tank fittings

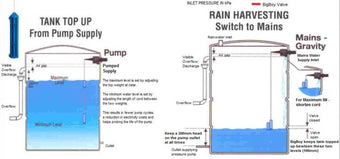

Application: (See diagrams)
- Pump fed large reservoirs - allows for a single level
or variable minimum and maximum water levels
- Mains/Gravity fed large storage tanks and/or reservoirs-
allows for a single level or variable minimum and maximum
water levles.
- Rain Harvesting - as a back up water supply control valve,
in the event of demand exceeding rainfall.

Sizes available:
BB 32 32mm
BB 40 40mm
BB 50 50mm

Operating PSI from 15 kPa-1200 kPa (2psi - 175psi)
Flow rates up to 1500 L/pm @1200 kPa.
