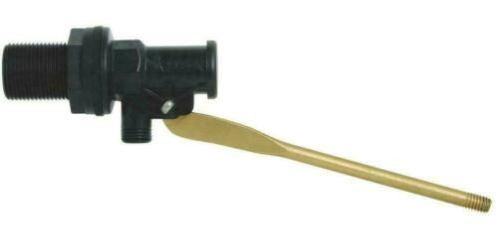

Due to the compact nature of the valve this is ideally suited to troughs with confined inlet compartments.
Minimum temperature: 1°C.
In areas where the temperature can be lower than 1°C (minimum service temperature) trough valves must be installed as bottom or side entry but NOT top entry.
Maximum temperature: 60°C.
Inserted seat to cover different inlet pressures.
Supplied with high pressure seat fitted (up to 1400 kPa [200psi] working pressure).
With seat removed, the valve is suitable for low to medium pressure (up to 500 kPa [70psi] working pressure).
