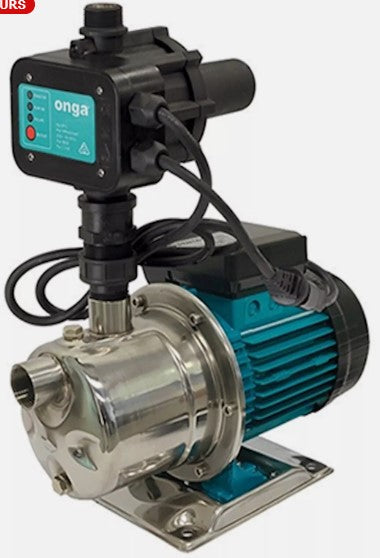

Onga JSP60 Jet Pressure Pump with Press Control 0.55KW 240V

(Formerly JSP110)

Onga’s jet-assisted The new JSP range of household pressure pumps feature a strong stainless steel pump casing with precision moulded jet, venturi and impeller for efficiency and great performance under high suction lift applications.

The new Italian made JSP series is now mounted on a stable, high quality stainless steel base for protection from corrosion. With 3 models in the range, the JSP is also available with a Presscontrol or Pressure Switch and Tank making a perfect household water pressure system.

APPLICATIONS

The JSP Series pressure system is ideal for installations with below ground water source, domestic water supply systems with continuous or intermittent duty. It is perfect for small farms, gardening irrigation and for all other general water transfer requirements.

KEY FEATURES

    Peace of mind reliability – thanks to the robust design

    Stainless steel casing with excellent corrosion resistance and toughness

    Self-priming with excellent suction capacity to a maximum depth of 7.6m

    Robust stainless steel base to lift pump above corrosive water on the ground

    Italian-made with quality construction

    Loss of prime protection for JSP models, protects pump from failure

    Max. head - 60 m

    Max. flow - 60 lpm

MOTOR

    Enclosed fan-cooled motor

    Protection rating IP 44

    Insulation class F

    Singe phase power supply with permanently activated capacitor

    Thermal protection incorporated in motor winding

    Continuous duty

USAGE DATA

    Type of liquid: clean water without suspended bodies or abrasive material that is non-viscous and chemically neutral

    Maximum liquid temperature: 50° C

    Maximum ambient temperature: 40° C

    Maximum suction depth: 7.6m with foot valve

    Maximum operating pressure: 6 Bar
