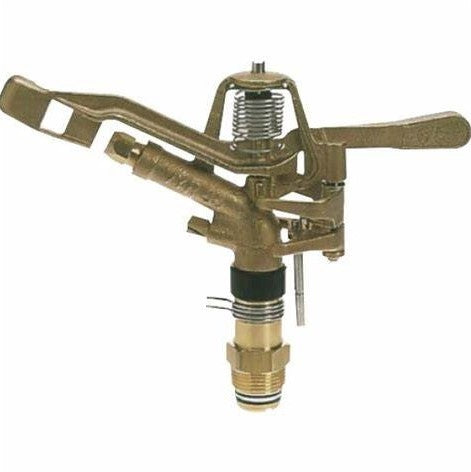

This sprinkler VYR-65 is a part-circle agricultural sprinkler, made of brass with 1" male thread connection. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel , Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.

This sprinkler is designed to work under some flow ranges between 2240 and 7840 l / h, at pressures between 3.5 and 6 and BAR with a coverage range between 16 and 24 meters in diameter. The main nozzle is 28 ° degree angle to the horizontal plane and the secondary 14 º. Their average time of rotation comes to be approximately 35 sec./rot.

For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 15x15 meters to 24x24 meters rectangular frames and 15x15 meters to 26x26 meters triangular frames.

6.4mm x 3.2mm Nozzle

Vyrsa 60-BRASS
20mm (3/4") Male Thread
4.4mm x 2.4mm Nozzle

Vyrsa 65 Brass Impact Sprinkler (4.4mm x 2.4mm Dual Nozzle)
Material Brass
Colour Brass
Min. Flow Output (Lpm) 61.7
Max. Flow Output (Lpm) 78.7
Min. Recommended Pressure (kPa) 490
Max. Recommended Pressure (kPa) 560
Min. Spray Radius (m) 17.4
Max. Spray Radius (m) 19.8
